Capabilities for a 16mm 60x180 Full Color LED Display
Your new LED sign will be capable of incredible things! From simple text to amazing animations, our signs allow your organization to thrive through effective communication. Learn more on our LED Sign Education page.
Understanding Your LED Display
Pixel Pitch
16mm (0.63 in.) is the pixel pitch. This is the distance between the centers of individual pixels (points of light) in the LED display. The smaller the pitch, the more pixels can fit inside of the display.
Matrix Size
60x180 is the matrix size. This is the number of pixels high (60) and the number of pixels wide (180) of the display. That's 10,800 pixels per side! The more pixels, the higher the clarity and amount of detail that can be shown.
Display Colors
This full-color display is capable of showing an enormous number of colors by combining red, green and blue light in different amounts!
Example of colors only. Amount of detail is dependent on matrix size.
Optimum Viewing Distance
The optimum viewing distance for this display is between 52' and 298'. Images and video clips at closer than 52' will be discernible, but will appear pixelated. Greater than 298' will decrease the display's readability. Learn more.

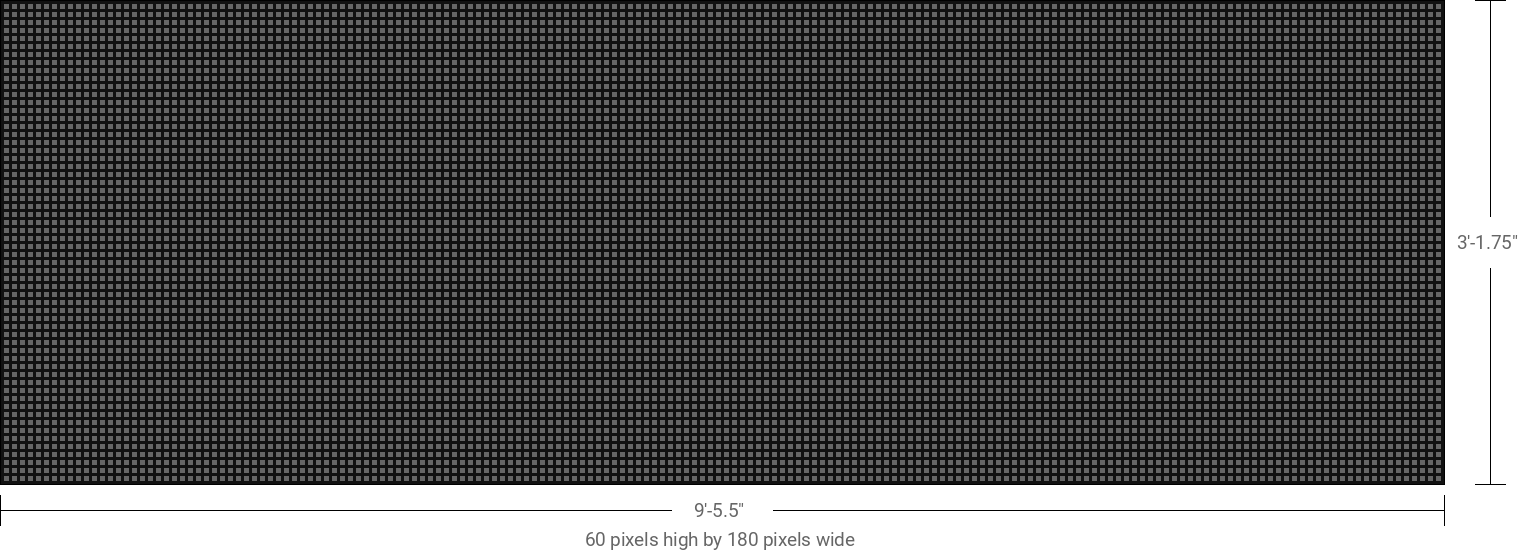

The display area is approximately 3'-1.75" high by 9'-5.5" wide,
or 29.8 sq.ft. per side.
Text Capabilities

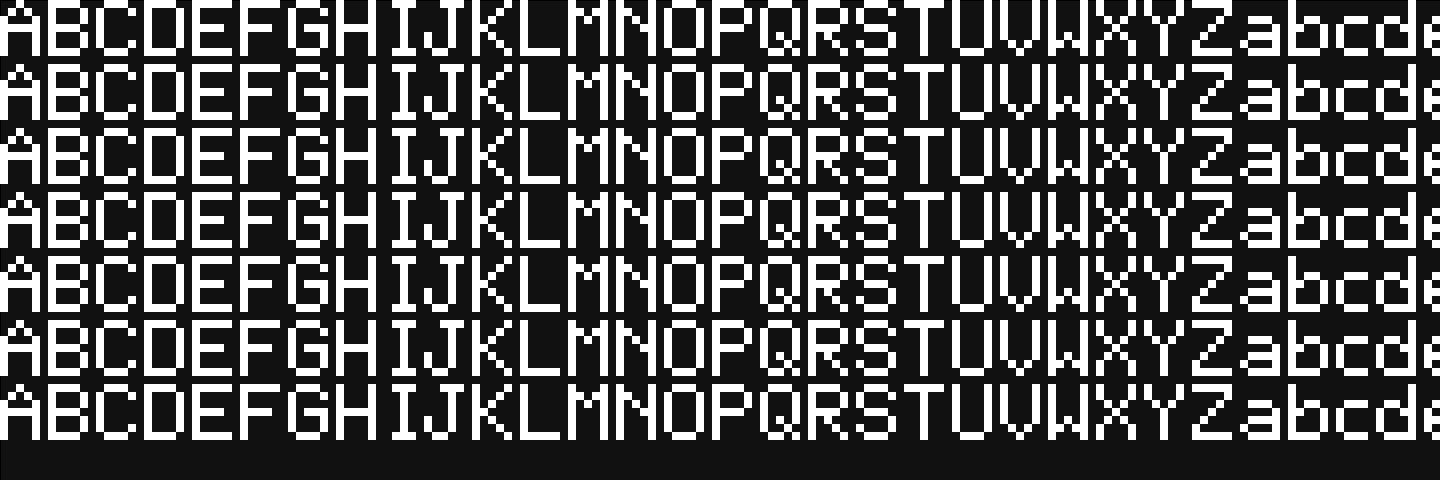

Maximum Text
The maximum amount of text for your LED display is 7 rows of 4.4" text. This size uses pixel text for optimum screen usage and clarity.

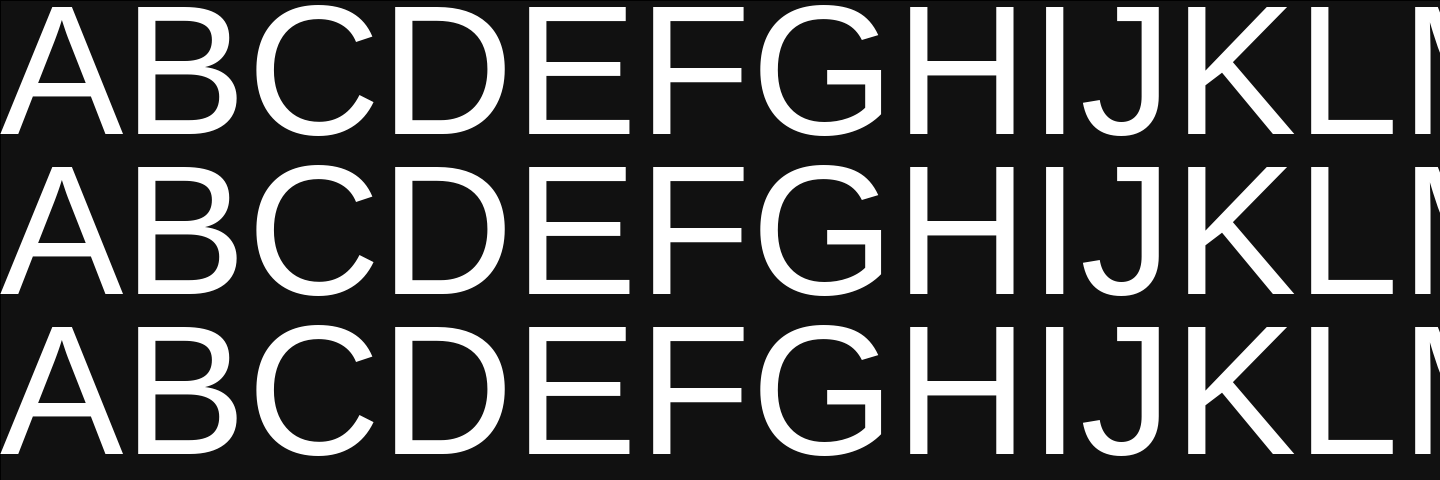

Optimum Text
A message can also be created using 3 rows of 12.4" text. This sized text is suitable for traffic speeds of up to 70+ mph.
Amount of detail is dependent on matrix size.
Fonts & Styles
In addition to pixel text, your message can be shown in many fonts and styles. Color and outline options are also available for full-color displays.
Amount of detail is dependent on matrix size.
Full Text Capabilities
This display is capable of the following text sizes. Miles per hour are based on five seconds of readability at that constant speed.
| 7 rows of 4.4" text * (Up to 30 mph.) |
| 6 rows of 5.7" text * (Up to 39 mph.) |
| 5 rows of 6.3" text * (Up to 43 mph.) |
| 5 rows of up to 7.4" text (Up to 50 mph.) |
| 4 rows of up to 9.3" text (Up to 63 mph.) |
| 3 rows of up to 12.4" text (Up to 70+ mph.) |
| 2 rows of up to 18.7" text (Up to 70+ mph.) |
| 1 row of up to 37.8" text (Up to 70+ mph.) |
| * Using pixel text. |
Media Capabilities
Media Library
Our cloud-based software has over 2,000 built-in video clips and images for use on any sized display. Get the maximum impact from your sign immediately with our continually growing library!
Amount of detail is dependent on matrix size.
Animation Templates
Make compelling, eye-catching custom messages for your sign!* Your text will be brought to life with movement and visual interest. If you can type, you can build amazing sign messages!
Check local ordinances regarding sign content.
Of course, you can upload and use your own images and video clips as well. We support AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF and WMV formats, with unlimited media file storage. Learn more about your new sign's capabilities with our cloud-based software SignCommand.com!
